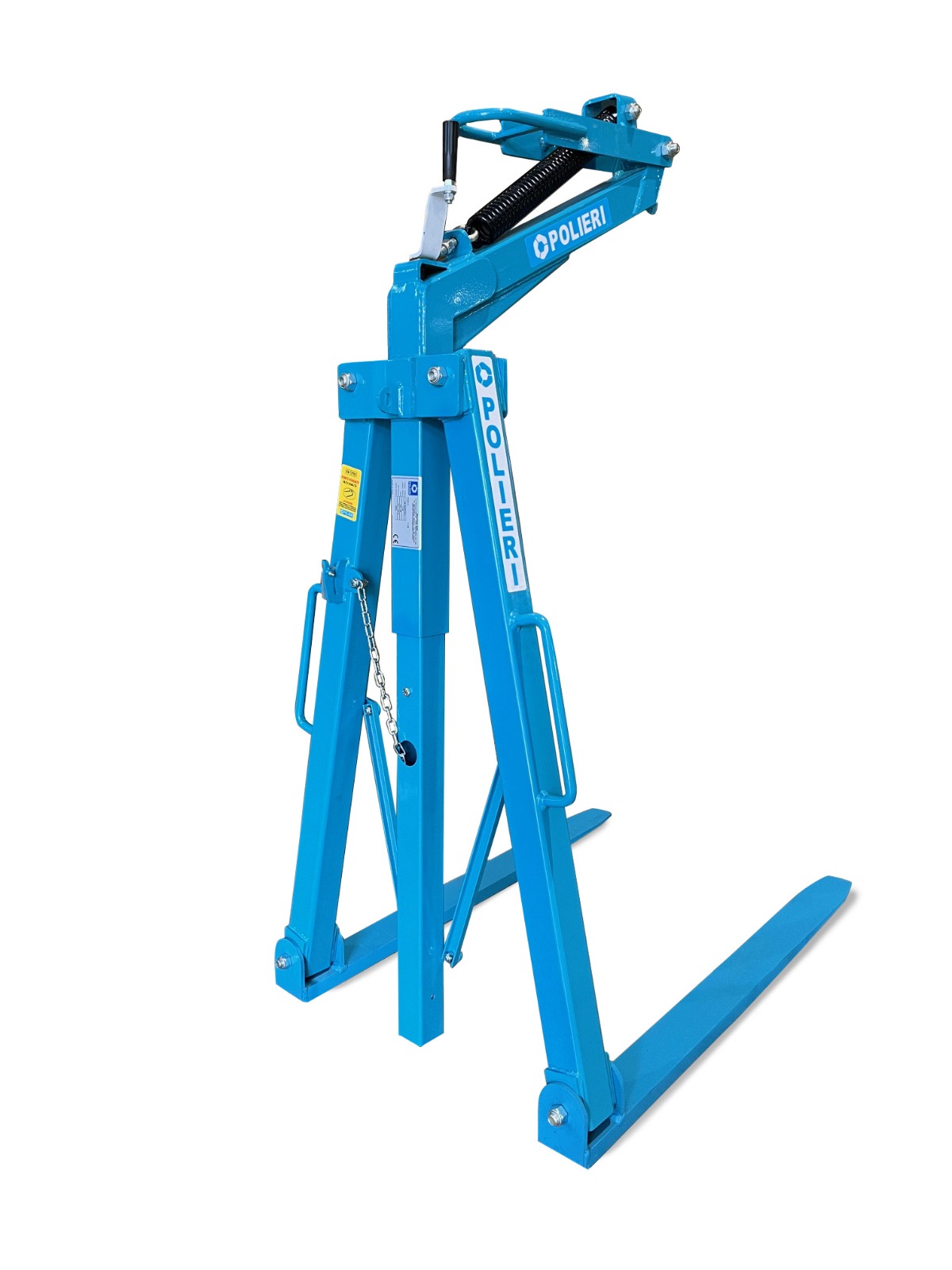

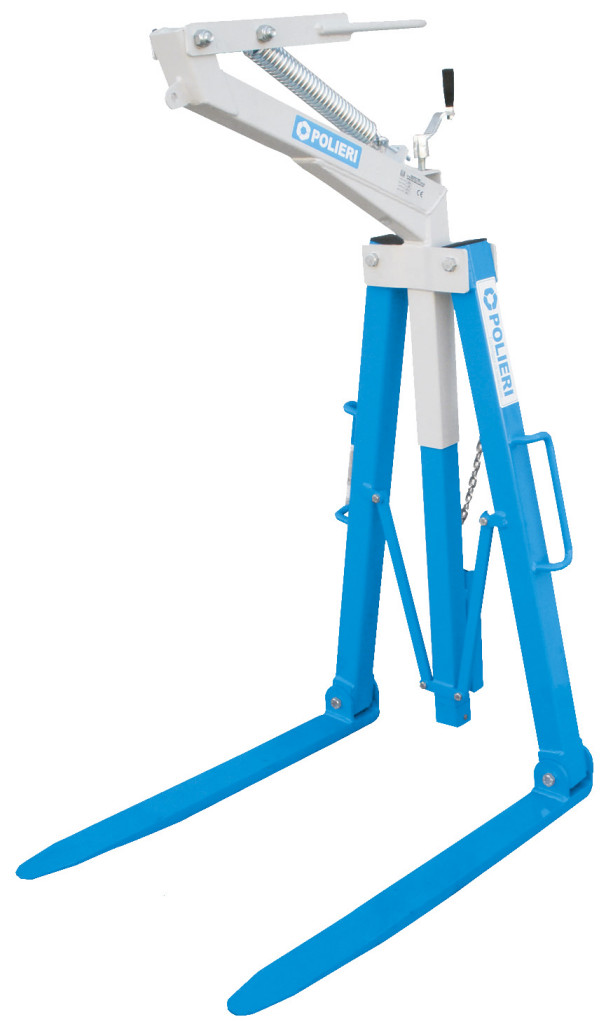

Crane fork with automatic spring balancing

The fork has practical adjustment up to the desired opening, functional and easy to handle closing lock using a special handwheel. The fork has small overall dimensions and always smaller than the load carried.

Technical specification
Type		FRC/100	FRC/110	FRC/120
Tare	Kg	150	156	162
Flow	kg	2000	2000	2000
A	mm	1200	1200	1200
B	mm	1300	1300	1300
C	mm	2350	2350	2350
D	mm	330	330	330
E	mm	1350	1350	1350
F	mm	1000	1100	1200
G	mm	1120	1220	1320
H	mm	100	100	100
I	mm	35	35	35
